Product Description
Features:
- Technician friendly, open-front design for easier access between platforms
- 6350 kg lift capacity
- Industry best lift height of 2000 mm (top of platform) providing more work area under vehicle
- Louvered ramps with polymer rollers for quieter operation
- Single point operation with air operated lock release
- Powder coated hammer tone finish improving durability & life
- High performance steel lifting cables for greater lifting capacity
- Optional RJ7100Y 3175 kg jacking bridges also available
- Optional S100151Y drive-thru ramp kit also available
- Optional SM14-05KIT1 approach ramp extension kit
Rotary, the world’s most trusted vehicle hoist company has set the benchmark for vehicle hoists.
As a member of the Vehicle Service Group (VSG), with manufacturing plants in three continents employing over 1700 personnel, Rotary is a strong, diverse and dynamic global leader in the vehicle service industry. With the widest variety of vehicle hoists on the market, Rotary manufactures Two Post, Four Post, Scissor, Alignment, Inground and Mobile Column lifts.
There is a perfect solution for everything from small vehicle workshops through to large scale commercial operations.
OPTIONAL EQUIPMENT & ACCESSORIES
3175 kg Air Operated Jacking Bridge
RJ7100Y
3175 kg Air Operated Jacking Bridge
Features
- 3175 kg lift capacity (ea)
- Air operated
- Spin up TA load pad assembly for increased flexibility
- Drop in extensions for extra height
- Rubber lifting blocks
- Storage tray for adaptors
- Additional lock positions
- Increased construction strength
- Improved & protected rolling wheel assemblies
| Specifications | RJ7100Y |
| Max. Lift Capacity (ea) | 3175 kg |
| Max. Lift Stroke | 254 mm |
| Collapsed Height | 200 mm |
| Extended Height | 478 mm |
| Min. Extension Width | 925 mm |
| Max. Extension Width | 1497 mm |

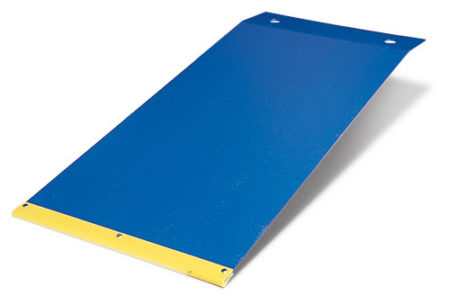

Extended Approach Ramp
SM14-05KIT1
Extended Approach Ramp
The SM14-05KIT1 simply attaches to the existing approach ramps and add an extra 597 mm to the approach ramps.
Drive-Thru Ramp Kit
S100151Y
Drive-Thru Ramp Kit
Designed to suit the SM14 hoist without alignment kit, the drive-thru ramp kit allows for the hoist to be turned into a drive-thru model with ease.

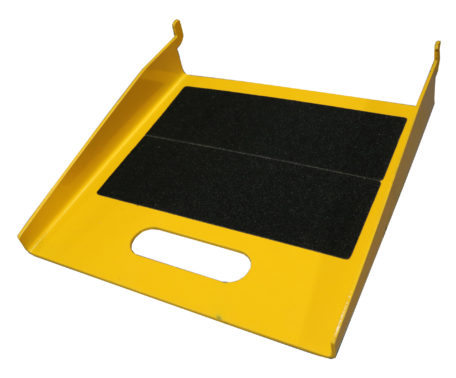

Work Step
FC5663Y
Work Step
Suit’s following models:
- XA10
- SM14 & SMO14 Series
- AR14 & ARO14 Series
- XM18
Features:
- Supplied in RAL1023 Yellow
- Supplied with anti-slip tape on step surface
- Each hoist model has a number of lock in provisions allowing the step to be used along the length of the platform.
38mm Rubber lift Block
FJ2427
38mm Rubber lift Block
Replacement rubber lift block for use with tyre service belly lifts, scissor lifts & 4 post hoists. Sold individually.
160 mm L x 120 mm W x 38 mm H
76mm Rubber Lift Block
FJ2428
76mm Rubber Lift Block
Replacement rubber lift block for use with tyre service belly lifts, scissor lifts & 4 post hoists. Sold individually.
160 mm L x 120 mm W x 76 mm H
